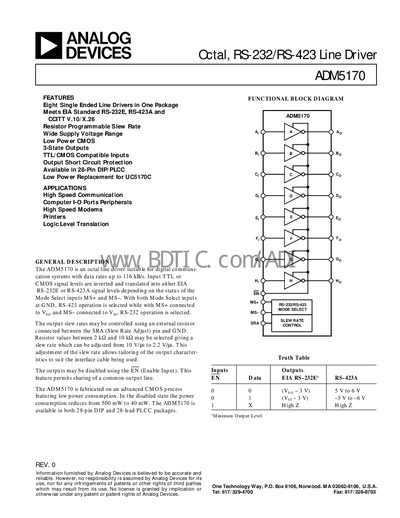

The ADM5170 is an octal line driver suitable for digital communi- cation systems with data rates up to 116 kB/s. Input TTL or CMOS signal levels are inverted and translated into either EIA RS-232E or RS-423A signal levels.
The ADM5170 is an octal line driver that converts TTL/CMOS inputs to RS‑232 or RS‑423 signal levels. It offers resistor‑programmable slew rate, 3‑state outputs, short‑circuit protection, and low power consumption, available in 28‑pin DIP and PLCC packages.
The document provides detailed specifications, absolute maximum ratings, pin configurations, programming information for slew rate and output mode, typical application circuits, performance graphs, and mechanical dimensions.
| Supply Voltage (Vpp) Range | 9 V – 15 V |
|---|---|
| Supply Voltage (V5) Range | -9 V – -15 V |
| Disabled Input Current (Ipp) | 2 mA – 4 mA |
| Enabled Input Current (Ipp) | 25 mA – 36 mA |
| RS‑232 High Level Output Voltage | 7.0 V – 7.6 V |
| RS‑232 Low Level Output Voltage | -7.0 V |
| Maximum Data Rate | 100 kB/s |
The absolute maximum data rate is 100 kB/s.
By connecting a resistor between 2 kΩ and 10 kΩ from the SRA pin to ground.
The device is offered in 28‑pin DIP and 28‑lead PLCC packages.
In the disabled state the power consumption drops from 500 mW to 40 mW.
