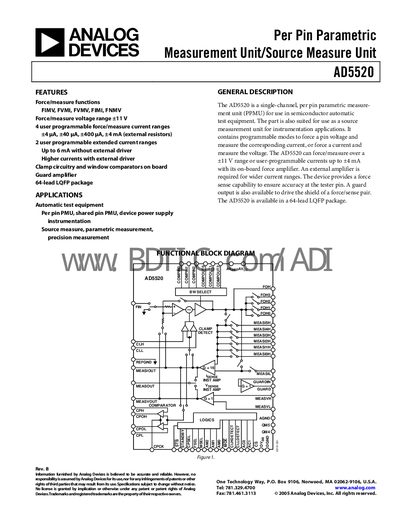

The AD5520 is a single-channel, per-pin parametric measurement unit (PPMU) for use in semiconductor automatic test equipment. The part is also suited for use as a source measurement unit for instrumentation.
The AD5520 is a single‑channel, per‑pin parametric measurement unit (PPMU) intended for semiconductor automatic test equipment and instrumentation. It can force a pin voltage and measure the resulting current, or force a current and measure the voltage, with a force‑sense capability for high accuracy.
Key features include a +11 V force voltage range, four programmable force/measure current ranges (+4 pA, +40 pA, +400 pA, +4 mA), on‑board force amplifier, guard driver, and a 64‑lead LQFP package. The device provides low‑offset, low‑drift amplifiers, high CMRR, and extensive protection features such as clamp circuitry and ESD protection.
| Force Control Output Voltage Range | +11 V |
|---|---|
| Force/Measure Current Ranges | +4 pA, +40 pA, +400 pA, +4 mA |
| MEASIOUT Output Load Current | +4 mA |
| Input Offset Error (Force Mode) | +1 mV |
| Gain Error (Force Mode) | 1 % |
| CMRR (Force Mode) | 95 dB @DC |
| Supply Voltage (AVcc) | +15 V ±5 % |
| Package | 64‑lead LQFP |
The AD5520 can force up to +11 V.
It provides programmable current ranges of +4 pA, +40 pA, +400 pA, and up to +4 mA (with external driver).
The device is supplied in a 64‑lead low‑profile quad flat package (LQFP).
The recommended supply voltage is +15 V with a tolerance of ±5 %.
