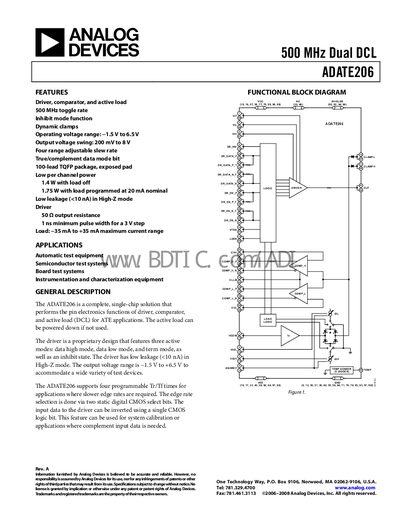

ADATE206 is a 500MHz dual DCL device for ATE applications with driver, comparator and active load (DCL) functions.
The ADATE206 is a single‑chip solution that provides driver, comparator, and active‑load functions for automatic test equipment, semiconductor test systems, and board test systems. It operates from –1.5 V to +6.5 V and supports both single‑ended and differential logic inputs.
Key specifications include a 500 MHz toggle rate, four‑range adjustable slew rate, low per‑channel power (1.4 W idle, 3.5 W at 20 mA load), and a 100‑lead thin‑quad flat package with exposed pad. The device also offers low leakage (<10 nA) in High‑Z mode and programmable timing parameters for precise edge‑rate control.
| Operating voltage range | -1.5 V to +6.5 V |
|---|---|
| Output voltage swing | 200 mV to 8 V |
| Toggle rate | 500 MHz |
| Package | 100‑Lead Thin Quad Flat Package, Exposed Pad (TQFP_EP) |
| Total power dissipation (load enabled) | ≈3.5 W |
The device operates from –1.5 V to +6.5 V.
It can toggle at up to 500 MHz.
It is supplied in a 100‑lead thin‑quad flat package with an exposed pad (TQFP_EP).
Typical total power dissipation is about 3.5 W with the load enabled.
