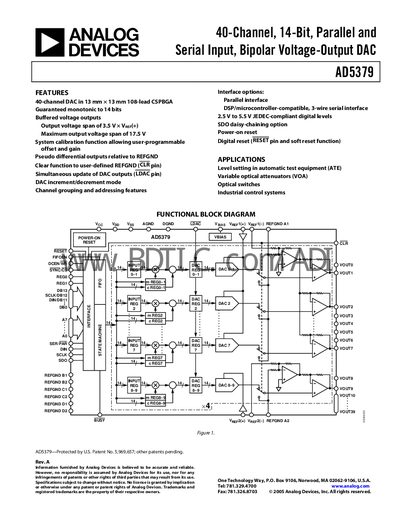

The AD5379 is a 40-channel, 14-bit, parallel and serial input, bipolar voltage-output DAC. It features guaranteed monotonicity to 14 bits, buffered voltage outputs, and an output voltage span of 3.5V×VREF(+).
The AD5379 is a 40‑channel, 14‑bit digital‑to‑analog converter packaged in a 108‑lead CSPBGA. It provides bipolar voltage outputs with a maximum span of 17.5 V (‑8.75 V to +8.75 V) and supports both parallel and 3‑wire serial interfaces compatible with SPI, QSPI, Microwire, and DSP standards.
Key specifications include a supply range of +11.4 V to +16.5 V, short‑circuit current rating of 15 mA, unloaded power dissipation of 850 mW, and a serial clock capability up to 50 MHz. The device also offers features such as simultaneous output updates, programmable gain/offset, and a clear function to reference ground.
| Resolution | 14 bits |
|---|---|
| Maximum Output Voltage Span | 17.5 V |
| Supply Voltage Range | +11.4 V to +16.5 V |
| Short‑Circuit Current | 15 mA max |
| Power Dissipation (unloaded) | 850 mW max |
| Serial Clock Speed | up to 50 MHz |
| Package Type | 108‑lead CSPBGA |
The DAC can produce a maximum output voltage span of 17.5 V, ranging from –8.75 V to +8.75 V.
It supports a parallel interface and a 3‑wire serial interface compatible with SPI, QSPI, Microwire, and DSP standards.
The serial interface can operate at clock speeds up to 50 MHz.
The device is supplied in a 108‑lead CSPBGA package.
