This document provides information on the system requirements and usage precautions for the JENOPTIK 3300 z3 camera, including the compatible operating systems and hardware requirements. It also includes explanations of the CE and FCC certifications.

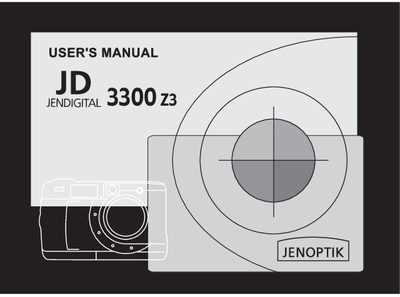

This manual covers safe handling, battery installation, and basic setup for the JD3300 Z3 digital camera. It includes a packing list, required system specifications, and warnings to prevent damage or injury.
Detailed sections explain how to attach accessories, insert memory cards, adjust focus, select recording modes, use flash, and navigate playback functions. Technical details such as dimensions, power options, and interface connections are provided at the end of the document.
| Dimensions (WxHxD) | 116 x 73 x 62 mm (4.57 x 2.87 x 2.44 in) |
|---|---|
| Weight | ≈ 280 g (9.88 oz) without batteries and CF card |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Power Supply – Batteries | AA‑size alkaline (x4) or AA‑size Ni‑MH (x4) |
| External Power | DC adapter (not supplied) via camera DC terminal |
| Video Output | Composite video, selectable NTSC or PAL |
| PC Interface | USB port |
| Flash Charge Time | ≈ 8 seconds |
| Self‑Timer Delay | ≈ 10 seconds |
| Drive Mode Options | Single shot, continuous shot (~1 fps), self‑timer shot |
It uses four AA‑size alkaline batteries or four AA‑size Ni‑MH rechargeable batteries.
Connect the camera to a computer using the built‑in USB port.
The camera operates from 0 °C up to 40 °C (32 °F to 104 °F).
Yes, a DC adapter (not supplied) can be connected to the camera’s DC terminal.
