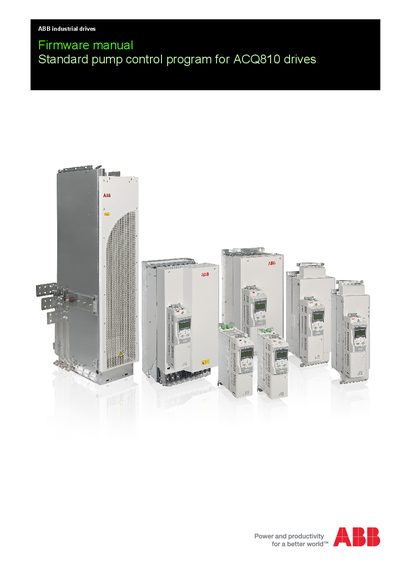

This document is the ABB industrial drives firmware manual, which introduces the standard pump control program for ACQ810 drives. The manual includes a list of related manuals and information about the manual.
The firmware manual for the ABB ACQ810 Standard Pump Control Program provides detailed information on safety instructions, installation procedures, and the functional features of the pump control system. It covers the configuration of PID control, sleep function, flow calculation, and protective functions, as well as the various programmable interfaces such as analog and digital I/O, fieldbus control, and extension modules.
Additional sections describe motor control options, application macros, diagnostics, and data storage. The document also includes parameter lists, fieldbus address information, and guidance for backup and restoration of drive contents, helping users to set up, operate, and maintain the ACQ810 system effectively.
| Drive module power range (low end) | 1.1 to 45 kW |
|---|---|
| Drive module power range (high end) | 200 to 400 kW |
The firmware includes emergency stop, thermal motor protection, programmable protection functions, and automatic fault reset.
Customization is possible via programmable analog inputs/outputs, digital I/O, fieldbus control, and user‑definable macros and load curves.
