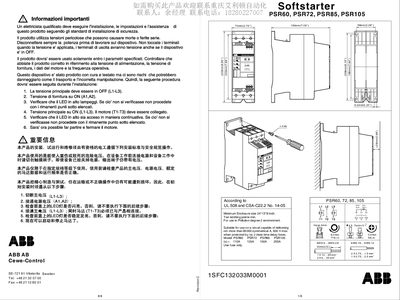

This product is a PSR60, PSR72, PSR85, PSR105 soft starter, which supports 100-240V voltage, input current of 110A-200A, output voltage of 600V, and is suitable for use in pollution degree 2 environment. It requires J class time delay fuses for protection.
The manual outlines essential safety precautions for working with the softstarter, emphasizing that only qualified electricians should perform installation, commissioning, and service. It warns that the device operates with hazardous voltages and must be completely de‑energized before any handling, and that terminals remain live even when the unit is off.
Installation procedures are described step‑by‑step: disconnect mains voltage, connect the supply voltage, verify the top LED blinks, then connect the motor leads (T1‑T3) and ensure the LED stays continuously on. Once these checks are passed, the motor can be started and stopped safely. The document also lists enclosure dimensions, environmental rating, and electrical ratings for the various PSR models.
| Enclosure size | 24 x 13 x 8 inches (minimum) |
|---|---|
| Pollution degree | Degree 2 environment |
| Maximum voltage | 600 V |
| Supported models | PSR60, PSRZ2, PSR85, PSR105 |
| Current rating options | 110 A, 125 A, 150 A, 200 A |
A qualified electrician must perform the work, and the mains power must be switched off and disconnected before any handling.
First check that the top LED is blinking after applying the supply voltage, then after connecting the motor ensure the top LED stays continuously on.
The minimum enclosure size is 24 × 13 × 8 inches.
