This product is an insulated test adapter for terminal blocks. It has the following features: it enables individual voltage control, it can be directly plugged into the jumper channels, it is compatible with isolated or non-isolated test plugs with diameters of 2 mm and 2.3 mm, and it can withstand more than 10,000 operations according to ABB test standards.

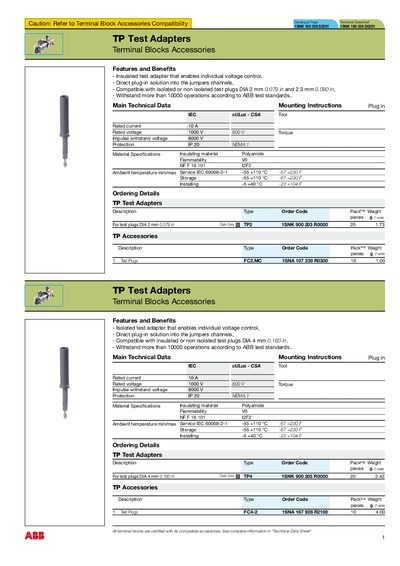

The TP Test Adapters are insulated or isolated test adapters that enable individual voltage control and direct plug‑in to jumper channels. They are compatible with test plugs of various diameters (2 mm, 4 mm) and are rated for more than 10 000 operations according to ABB test standards.
Key technical data include rated current (10 A for 2 mm adapters, 16 A for 4 mm adapters), rated voltage 1000 V/600 V, impulse withstand voltage 8000 V, IP‑20 protection, polyamide insulating material, and an operating temperature range from –65 °C to +110 °C. Ordering information lists part numbers TP2 and TP4 with corresponding accessories.
| Rated current | 10 A (2 mm) / 16 A (4 mm) |
|---|---|
| Rated voltage | 1000 V / 600 V |
| Impulse withstand voltage | 8000 V |
| Protection rating | IP‑20 NEMA 1 |
| Insulating material | Polyamide |
| Ambient temperature range (service) | -65 °C to +110 °C |
The 2 mm TP test adapter is rated for 10 A.
They can operate from –65 °C to +110 °C in service conditions.
The adapters can withstand an impulse voltage of 8000 V.
