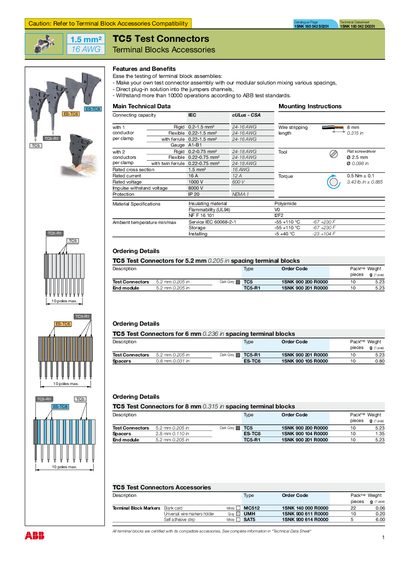

The 1.5 mm² 16 AWG TC5 Test Connectors are ABB terminal block accessories that are compatible with terminal block assemblies for testing purposes.
The TC5 Test Connectors from ABB are modular accessories designed to simplify testing of terminal block assemblies. They support various spacings, direct plug‑in to jumper channels, and are rated for over 10,000 operations per ABB test standards.
The document lists main technical data such as a maximum of 410 poles, rated current of 16 A (12 A), rated voltage of 1000 V (600 V), impulse withstand voltage of 8000 V, IP20/NEMA 4 protection, and operating temperature ranges. Ordering information for different spacing options and related accessories is also included.
| Maximum poles | 410 |
|---|---|
| Rated current | 16 A (12 A) |
| Rated voltage | 1000 V (600 V) |
| Impulse withstand voltage | 8000 V |
| Protection rating | IP20, NEMA 4 |
| Insulating material | Polyamide |
| Ambient temperature range | -65 °C to +110 °C |
| Installation temperature range | -5 °C to +40 °C |
The TC5 test connector can accommodate up to 410 poles.
It is rated for 16 A (12 A) current and 1000 V (600 V) voltage.
Storage is rated from –65 °C to +110 °C, while installation temperature is –5 °C to +40 °C.
