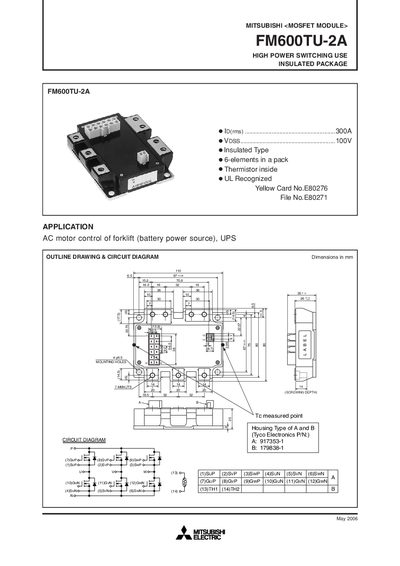

This document describes the features and characteristics of Mitsubishi's MOSFET module FM600TU-2A, including high power switching applications, insulated package, AC motor control, UL recognition, etc.
The FM600TU-2A is a high‑power MOSFET module in an insulated package designed for use in AC motor control of forklifts (battery powered) and UPS systems. It features a 6‑element pack with an internal thermistor and UL recognition.
The datasheet lists key electrical specifications such as 100 V drain‑source voltage, 20 V gate‑source voltage, 300 A continuous drain current, and 260 W maximum power dissipation. Thermal data, switching characteristics, gate charge curves, and mechanical dimensions are also provided to aid designers in integrating the module into high‑current, high‑frequency applications.
| Drain‑source voltage (Vds) | 100 V |
|---|---|
| Gate‑source voltage (Vgs) | +20 V |
| Maximum power dissipation (Pd) | 260 W |
| Typical weight | 600 g |
| Thermal resistance (junction‑to‑case) | 0.13 °C/W |
The isolation voltage is rated at 2500 V.
It is intended for AC motor control of forklifts (battery power source) and UPS systems.
The typical weight of the module is 600 g.
