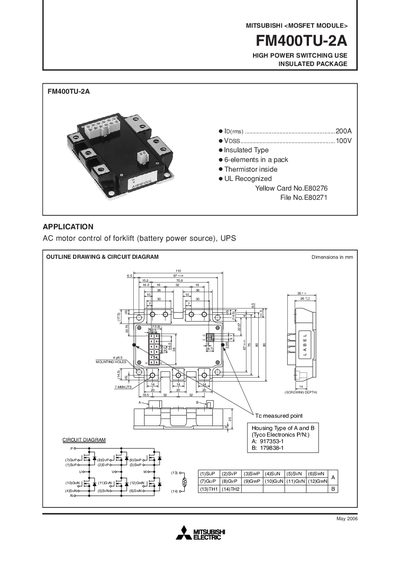

FM400TU-2A is a high power switching use insulated package MOSFET module. Its application range includes forklift (battery power source) AC motor control and UPS. The module's rated voltage is 100V and rated current is 200A. It has a thermistor and has been UL recognized.
The FM400TU-2A is a high‑power MOSFET module designed for insulated, high‑current switching applications such as AC motor control for forklifts and UPS systems. The document provides absolute maximum ratings, electrical characteristics, and detailed performance curves.
Key sections include absolute maximum ratings, electrical characteristics (drain‑source voltage, gate‑source voltage, on‑state resistance, capacitances), thermistor parameters, and switching characteristics for both half‑bridge configurations. The data is presented with typical values and limits for design reference.
| Drain‑source voltage (Vdss) | 100 V |
|---|---|
| Gate‑source voltage (Vgss) | +20 V |
| Maximum power dissipation | 850 W |
| Typical weight | 600 g |
| Isolation voltage (main terminal to base plate) | 2500 V |
The isolation voltage is specified as 2500 V for a one‑minute test.
The typical weight of the module is 600 g.
