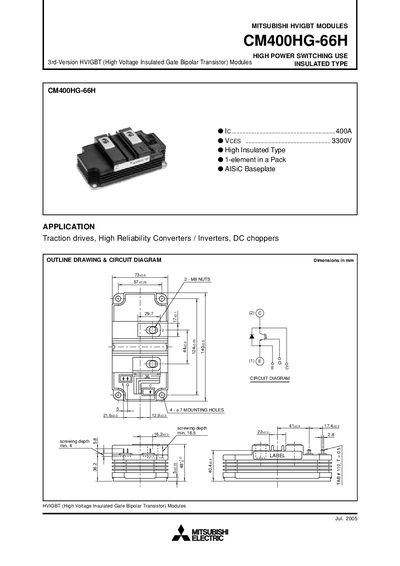

This document describes the MITSUBISHI HVIGBT module CM400HG-66H produced in July 2005. The module is designed for high power switching and insulated type applications. It features high voltage, high reliability, and is suitable for traction drives, high reliability converters/inverters, and DC choppers.
The CM400HG-66H is a high‑power HVIGBT module designed for traction drives, high‑reliability converters/inverters, and DC choppers. It features an insulated type construction with a single element in a pack and an AISiC baseplate.
The document provides maximum electrical ratings, thermal and mechanical characteristics, performance curves, and detailed capacitance and switching specifications, enabling engineers to assess suitability for high‑voltage, high‑current applications.
| Junction temperature range (Tj) | -40 °C to +150 °C |
|---|---|
| Mass | 0.52 kg |
| Main terminal screw torque (M8) | 7.0‑15.0 N·m |
