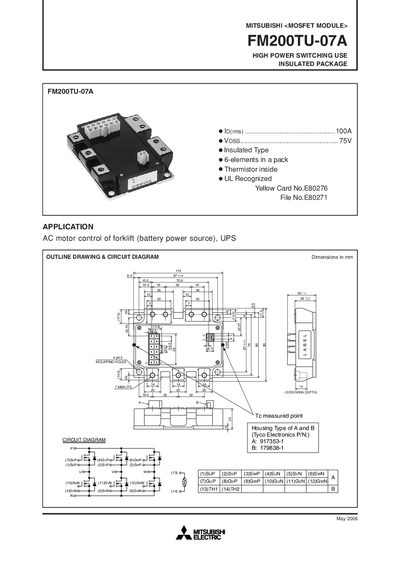

This document describes the features and characteristics of the MITSUBISHI MOSFET module FM200TU-07A, which is suitable for high power switching applications. It has insulated packaging, 6-element integration, and internal thermistor. This module is used for AC motor control of forklifts and UPS.
The FM200TU‑07A is a high‑power switching MOSFET module in an insulated package, intended for applications such as AC motor control of forklifts and UPS systems. The document provides absolute maximum ratings, electrical and thermal characteristics, and detailed performance curves.
Key data include a 75 V drain‑source voltage rating, 100 A continuous drain current, typical on‑resistance of 1.2 mΩ, and a typical power dissipation of 410 W. The datasheet also lists switching times, gate charge, and free‑wheel diode parameters for inductive load operation.
| Drain‑source voltage (V_DSS) | 75 V |
|---|---|
| Gate‑source voltage (V_GSS) | +20 V |
| Pulse drain current | 200 A |
| Typical power dissipation | 410 W |
| Weight (typical) | 600 g |
The device is rated for a maximum drain‑source voltage of 75 V.
The typical weight is 600 g.
