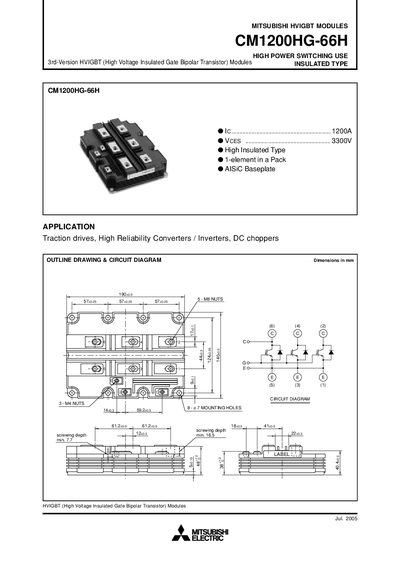

CM1200HG-66H is a high voltage insulated gate bipolar transistor (HVIGBT) module with a rated current of 1200A and a rated voltage of 3300V. It features high reliability and low power consumption, making it suitable for applications such as traction drives, high reliability converters/inverters, and DC choppers.
The CM1200HG-66H is a high‑power insulated‑gate bipolar transistor (HVIGBT) module designed for traction drives, high‑reliability converters/inverters, and DC choppers. It is an insulated‑type, single‑element pack with an AISiC baseplate.
The document lists maximum electrical ratings, thermal and mechanical characteristics, performance curves, and switching energy data, enabling engineers to assess suitability for high‑voltage, high‑current applications.
| Junction temperature range | -40 °C to +150 °C |
|---|---|
| Mass | 1.35 kg |
The junction temperature can operate from –40 °C up to +150 °C.
