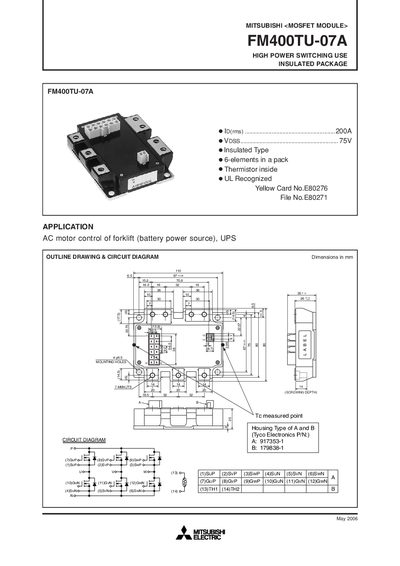

Mitsubishi FM400TU-07A MOSFET Module Datasheet

This document introduces the features and characteristics of the MITSUBISHI FM400TU-07A high power switching insulated package. It is mainly used for AC motor control of forklift (battery power source) and UPS. It has ID(rms) of 200A, VDSS of 75V, a pack of 6 elements, thermistor inside, and UL recognition.

Brand: Mitsubishi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 107 KB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 00D64F6B320B69AB68BE7A02065C74D7
PDF: Mitsubishi FM400TU-07A MOSFET Module Datasheet PDF

About this manual

The FM400TU-07A is a high‑power MOSFET module designed for insulated switching applications such as AC motor control for forklifts and UPS systems. It features an insulated package with six MOSFET elements, a built‑in thermistor, and UL recognition.

Key electrical characteristics include a 75 V drain‑source rating, 200 A continuous drain current, 850 W maximum power dissipation, and a typical weight of 600 g. Performance curves and switching characteristics are provided for various gate‑source voltages and load conditions, along with thermal resistance data for proper heat‑sink design.

What's inside

APPLICATION
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
PERFORMANCE CURVES
GATE CHARGE CHARACTERISTICS
SWITCHING CHARACTERISTICS
REVERSE RECOVERY CHARACTERISTICS
CHIP LAYOUT

Specifications

Weight	600 g
Thermal resistance (Rth(ch‑c))	0.19 °C/W
