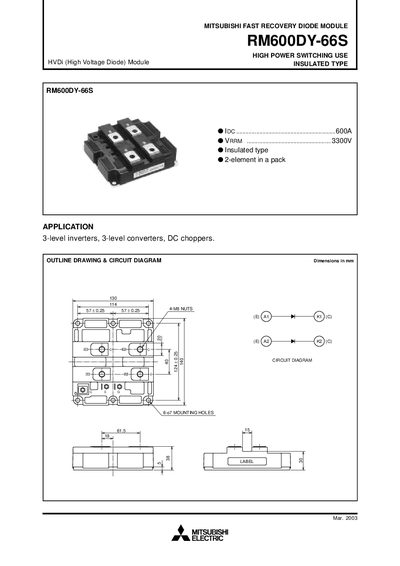

RM600DY-66S is a fast recovery diode module produced by Mitsubishi. The module has a rated voltage of 3300V and a rated current of 600A. It has the characteristics of high power switching and insulated type, and can be used in 3-level inverters, 3-level converters and DC choppers.
The RM600DY-66S fast‑recovery diode module is designed for high‑power switching applications such as 3‑level inverters, converters and DC choppers. It features an insulated type construction with two elements in a single pack.
Key electrical ratings include a repetitive peak reverse voltage of 3300 V, surge forward current of 4800 A, and a continuous output current of 600 A. The device operates from –40 °C to +150 °C junction temperature, offers 6000 V isolation, and provides detailed performance curves for forward voltage, reverse recovery time, and thermal impedance.
| Repetitive peak reverse voltage (VRRM) | 3300 V |
|---|---|
| Non‑repetitive peak reverse voltage (VRSM) | 3300 V |
| Reverse DC voltage (VRIDC) | 2200 V |
| Continuous output current (IDc) | 600 A |
| Junction temperature range | -40 ~ +150 °C |
| Storage temperature range | -40 ~ +125 °C |
| Mounting torque (M8 screw) | 6.67 ~ 13.00 N·m |
| Mass | 15 kg |
The module can withstand a repetitive peak reverse voltage of 3300 V.
The junction temperature range is –40 °C to +150 °C, and the storage temperature range is –40 °C to +125 °C.
