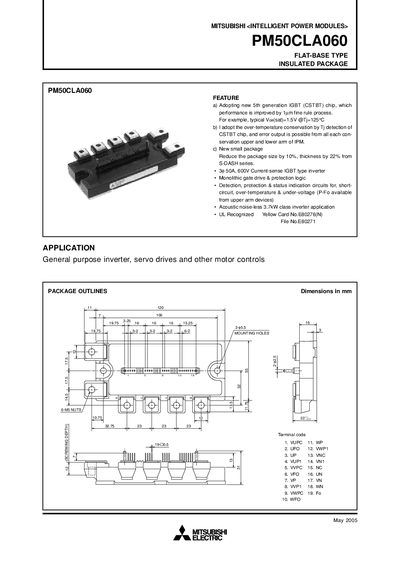

This document describes the features and characteristics of the MITSUBISHI Intelligent Power Module PM50CLA060, released in May 2005. It adopts a new 5th generation IGBT (CSTBT) chip, which improves performance. The module also has temperature protection and error output capabilities, and comes in a smaller package. It is suitable for general purpose inverters, servo drives, and other motor control applications.
The PM50CLA060 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT) chip, reduced package size, and built‑in gate drive and protection logic. It is intended for general‑purpose inverter, servo drive, and other motor control applications.
The manual details electrical and thermal ratings, recommended mounting and wiring practices, testing procedures, and performance curves, helping users safely install, configure, and maintain the module.
| Collector Current (Ic) | 50 A |
|---|---|
| Junction Temperature Range | 20 ~ +150 °C |
| Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Surge Voltage | 500 V |
| Storage Temperature | 40 ~ +125 °C |
| Mounting Torque (M5 screw) | 2.5 ~ 3.5 Nm |
| Weight | 380 g |
The module is rated for a continuous collector current of 50 A.
The recommended supply voltage is between 13.5 V and 16.5 V.
