This document is about the MITSUBISHI MOSFET module FM200TU-3A. The module is suitable for high power switching applications and is used for AC motor control of forklifts (battery power source) and UPS. It has high current and high voltage characteristics, a 6-element package, and an internal thermistor. It is UL recognized.
The FM200TU-3A is a high‑power insulated MOSFET module designed for applications such as AC motor control in forklifts and UPS systems. It features a six‑element pack with an integrated thermistor and meets UL recognition standards.

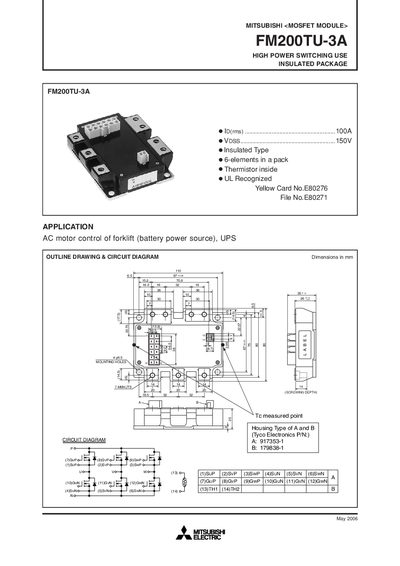

The datasheet provides absolute maximum ratings, detailed electrical characteristics, thermal data, and switching performance curves, along with layout diagrams and typical gate‑charge characteristics for designers.
| Drain‑source voltage (Vds) | 150 V |
|---|---|
| Gate‑source voltage (Vgs) | +20 V |
| Continuous drain current (Id) | 100 A |
| Pulse drain current (Id,pulse) | 200 A |
| Maximum operating temperature (Tj) | +150 °C |
| Storage temperature range | -40 ~ +125 °C |
| Isolation voltage (Viso) | 2500 V |
| Weight | 600 g |
The module can handle a continuous drain current of 100 A.
The device is rated for a drain‑source voltage of 150 V.
Yes, the module is UL recognized (Yellow Card No.E80276).
