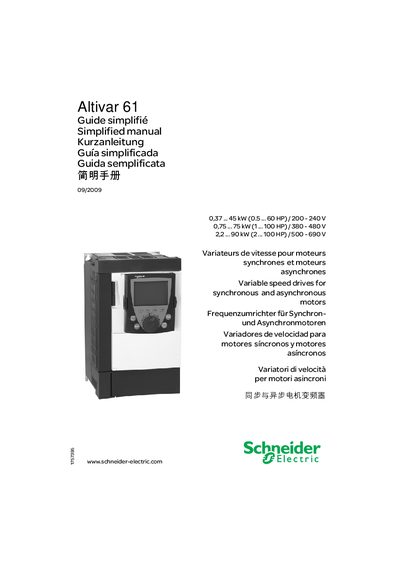

This document is a simplified manual of Altivar 61, a variable speed drive from Schneider Electric. It introduces the main features, usage and installation instructions of the drive.
The Altivar 61 simplified manual provides step‑by‑step guidance for installing and configuring the variable‑frequency drive on both synchronous and asynchronous motors. It includes preliminary recommendations, mounting conditions, wiring precautions, and basic menu navigation.
Safety instructions emphasize de‑energising the drive, waiting for the DC‑bus capacitor charge indicator to extinguish, and using proper insulated tools. The document also details terminal connections, power‑bus specifications, and fault‑diagnosis procedures. This manual is written in French.
| Maximum power rating | 45 kW (60 HP) at 200‑240 V |
|---|---|
| Maximum ambient temperature | 50 °C (122 °F) |
| Minimum clearance for mounting | 50 mm |
The drive must be de‑energised, the red capacitor‑charge indicator must be off, and the DC‑bus voltage must be verified to be below 45 V before any intervention.
Disconnect the power, wait 15 minutes, then measure the voltage between the PA/+ and PC/- terminals.
A protective conductor of at least 10 mm² (AWG 6) must be used for the grounding connection.
