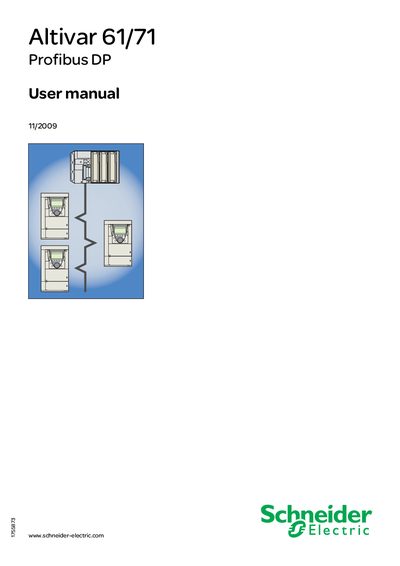

Describes the function and use of the Altivar 61/71 Profibus DP card
This manual covers safety precautions, hardware setup, and connection of the Profibus DP communication card to an Altivar 61/71 drive. It details the required 9‑pin female SUB‑D connector, RS‑485 isolated interface, and the need for separate cabling and terminators.
The document also explains software configuration using the integrated display terminal and PL7, outlines diagnostics, LED indications, and provides wiring tables for input and output PZDs. It includes a detailed description of Profibus DP protocol parameters and example PLC mapping.
| Connector type | 9‑pin female SUB‑D connector |
|---|---|
| Interface standard | RS‑485 electrically isolated |
| Maximum safe DC bus voltage before service | < 45 Vdc |
The card connects via a 9‑pin female SUB‑D connector that follows the RS‑485 standard and is electrically isolated; the required cable and connectors must be ordered separately.
The catalog number is V\W3 A3 307.
