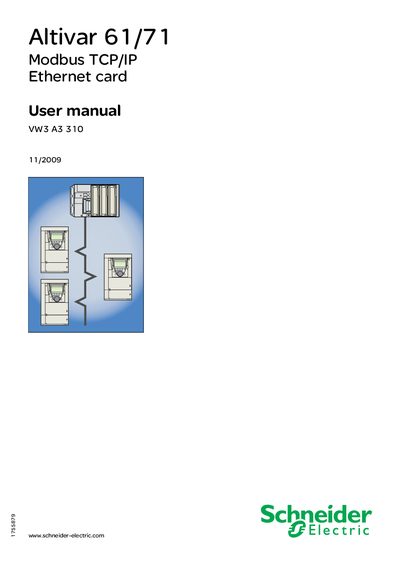

This user manual describes the hardware setup and connection to the Ethernet network for the Schneider Electric Altivar 61/71 Modbus TCP/IP Ethernet card.
This manual provides detailed instructions for installing, configuring, and maintaining the Modbus TCP/IP Ethernet card used with Schneider Electric Altivar 61/71 drives. It includes hardware setup, network connection, Ethernet menu navigation, and diagnostic procedures.
Safety information, static‑sensitivity warnings, and guidelines for qualified personnel are included, along with references to related Altivar documentation and software tools such as ProWORX NxT.
| MAC address | 00-80-F4-80-xx-yy |
|---|---|
| Connector type | Shielded female RJ45 |
| Card catalog number | VW83 A3 310 |
The Ethernet card is static‑sensitive; electrostatic precautions must be observed when handling and installing it.
