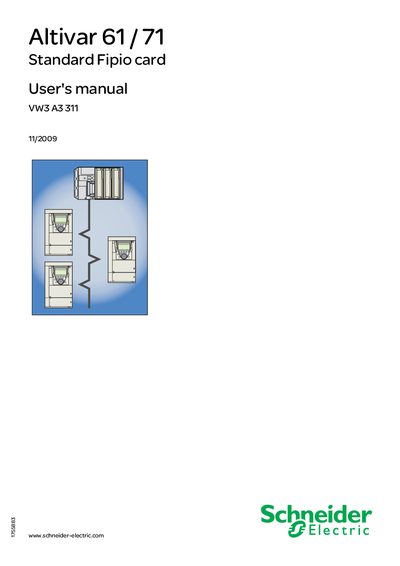

This file is the user's manual for the Schneider Electric Altivar 61 / 71 Standard Fipio card, which introduces the hardware setup, connection to the bus, etc. of the card
This manual provides safety instructions and preparation steps required before working with the Altivar 61/71 Standard Fipio card. It emphasizes hazardous voltage precautions, proper labeling, and the need to disconnect power before servicing.
The document details hardware setup, including the 9‑way male SUB‑D connector, address switch coding, and wiring examples. It also explains bus connection accessories, configuration options, and diagnostic procedures using the integrated or graphic display terminals.
| Connector type | 9‑way male SUB‑D |
|---|---|
| Address range | 1 to 62 (binary‑coded) |
| Switch coding | Binary‑coded address switches |
| Bus accessory | TSX FP ACC 12 or TSX FP ACC 2 connector |
The address is set with the binary‑coded address switches on the card, and the switches can only be changed when the drive is powered down.
The card uses a 9‑way male SUB‑D connector for connection to the Fipio bus.
The drive must be powered down and the appropriate TSX FP ACC connector must be used for the connection.
The card uses the FED C 32 profile for data exchange.
