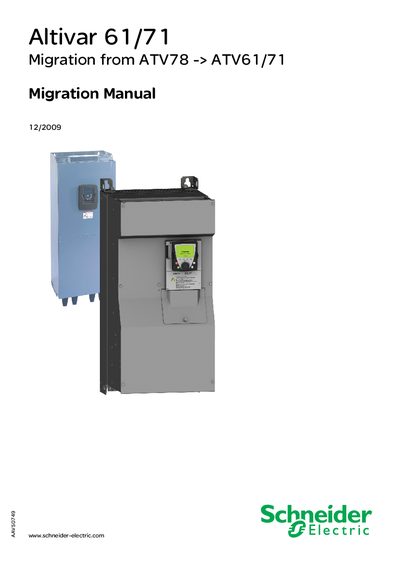

Schneider Altivar 61/71 Migration Manual

About this manual

This migration manual explains how to replace an Altivar 78 variable‑frequency drive with either an Altivar 61 (variable torque) or Altivar 71 (constant torque) drive. It helps you select the appropriate drive, choose power‑circuit options, and understand mounting accessories and I/O extensions.

The document also provides detailed wiring recommendations, mounting procedures, and safety warnings, and points to the Installation and Programming manuals for further configuration details.

What's inside

• Determining catalog numbers
• Choice of Altivar 61 or Altivar 71
• Selecting power circuit options
• Mounting accessories
• Control circuit option – Remote display terminal
• Choice of I/O extension cards
• Drive setup
• Mounting procedures
• Comparison of dimensions
• Power section wiring

Frequently asked questions

What is the purpose of this migration manual?

It guides you through replacing an Altivar 78 drive with an Altivar 61 or Altivar 71 drive.
