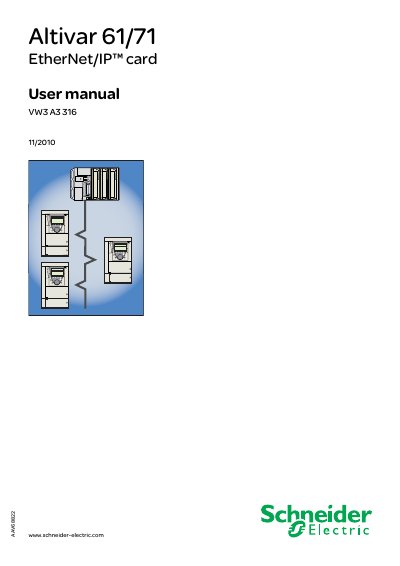

Schneider Electric Altivar 61/71 EtherNet/IP Card User Manual

This manual describes the hardware setup and connection of the Altivar 61/71 EtherNet/IP™ card.

Brand: Schneider
Category: Industrial Supply
Document type: User Manual
Language: English
Pages: 74
File format: PDF
File size: 5.8 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: ALTIVAR61
MD5 checksum: BC3633725A548FEC58E99CC439CDDDBA
PDF: Schneider Electric Altivar 61/71 EtherNet/IP Card User Manual PDF

About this manual

This manual provides detailed instructions for installing and configuring the Altivar 61/71 EtherNet/IP card (catalog number VW3 A3 316). It includes safety information, hardware setup, network connection, HMI usage, and integration with RSLogix.

The document also describes the card's technical features such as RJ45 connector pinout, supported transmission speeds, IP address assignment methods, and web‑server functions, along with fault management and diagnostic procedures.

What's inside

Important Information
Hardware Setup
Connecting to the EtherNet/IP Network
Using the HMI with the EtherNet/IP Card
Configuration of the Assemblies
Fault Management
Webserver
Integration in RSLogix
CIP Objects
Device Profiles

Specifications

Number of RJ45 connectors	2 shielded RJ45 connectors
Supported transmission speeds	10 Mbps or 100 Mbps (auto‑detect)
Duplex mode	Half duplex or full duplex
MAC address format	00‑80‑F4‑XX‑XX‑XX

Frequently asked questions

How many RJ45 connectors does the EtherNet/IP card have?

The card has two shielded RJ45 connectors.

What transmission speeds are supported by the card?

It supports 10 Mbps and 100 Mbps, automatically detecting the speed.

Can the card operate in half‑duplex mode?

Yes, the card can operate in either half‑duplex or full‑duplex mode.
