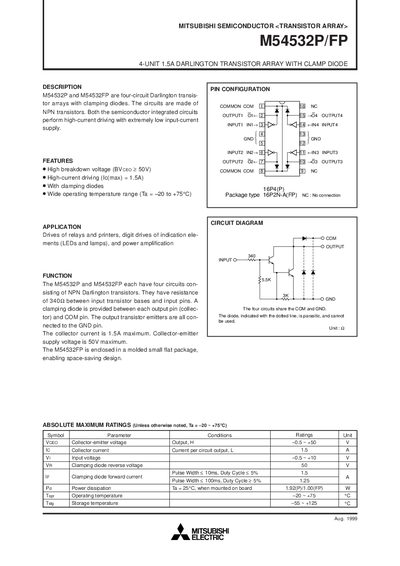

M54532P/FP is a four-circuit Darlington transistor array with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M54532P and M54532FP are four‑circuit Darlington transistor arrays with integrated clamping diodes, built from NPN transistors. They deliver high‑current driving capability (1.5 A per circuit) while maintaining a low input‑current requirement and a wide operating temperature range.
Typical applications include driving relays, printers, LEDs, lamps, and other indication elements. The devices feature a maximum collector‑emitter voltage of 50 V, input voltage range of 0.5 V to 10 V, and are supplied in a compact 16‑pin molded flat package (16P2N‑A(FP)).
| Input voltage (VI) | 0.5 V – 10 V |
|---|---|
| Clamping diode reverse voltage (VR) | 50 V |
| Operating temperature range | -20 °C to +75 °C |
| Package type | 16P2N‑A(FP) molded flat package |
It operates from –20 °C up to +75 °C.
The M54532FP is supplied in a molded small flat package, type 16P2N‑A(FP).
