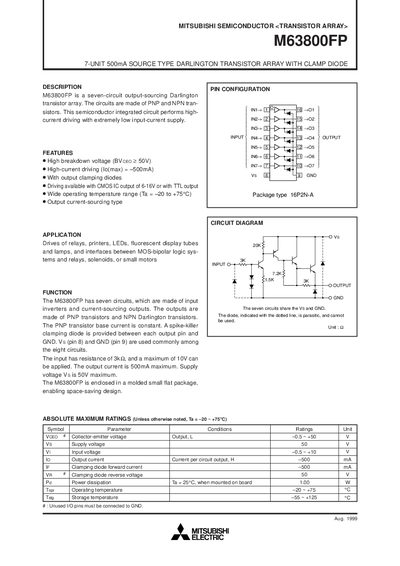

M63800FP is a seven-channel output sourcing Darlington transistor array composed of PNP and NPN transistors. It has an extremely low input current supply and can perform high current driving.
The M63800FP is a seven‑circuit Darlington transistor array that provides high‑current sourcing (500 mA per circuit) with low input‑current supply. It features built‑in clamping diodes, a wide operating temperature range (‑20 °C to +75 °C), and can be driven from CMOS or TTL outputs.
Typical applications include driving relays, printers, LEDs, fluorescent tubes, lamps, and interfacing MOS‑bipolar logic to relays, solenoids, or small motors. The device is supplied in a molded flat 16‑pin package and shares common supply (Vs) and ground pins across all circuits.
| Breakdown voltage (BVceo) | 50 V |
|---|---|
| Supply voltage (Vs) maximum | 50 V |
| Input voltage range | -0.5 V to +10 V |
| Operating temperature range | -20 °C to +75 °C |
| Clamping diode forward current | ‑500 mA |
| Clamping diode reverse voltage | 50 V |
The recommended supply voltage is 0 V to 50 V.
The device operates from –20 °C up to +75 °C.
It contains seven Darlington transistor units.
