This document describes the features and characteristics of the PS21963-4ES integrated power module, including a 600V/8A low-loss inverter bridge, open emitter type, and applications for AC100V~200V inverter drive.

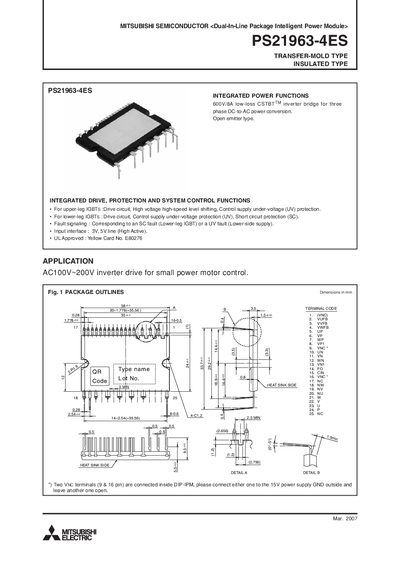

This document describes the Mitsubishi PS21963-4ES dual‑in‑line package intelligent power module (DIP‑IPM). It outlines the integrated drive, protection, and system control functions, as well as the electrical and thermal ratings for the module.
The manual includes maximum ratings, mechanical characteristics, recommended operation conditions, wiring diagrams, and timing charts for short‑circuit and under‑voltage protection, helping designers integrate the module into AC‑to‑DC inverter applications.
| Supply voltage (Veco) | 450 V |
|---|---|
| Surge supply voltage (Vccisurge) | 500 V |
| Collector‑emitter voltage (VCES) | 600 V |
| Continuous collector current (Ic) | 8 A |
| Peak collector current (ICP) | < 16 A |
| Power dissipation per chip (Pc) | 24.3 W |
| Isolation voltage (pins‑to‑heat‑sink) | 1500 V |
| Weight | 10 g |
The module is rated for a collector‑emitter voltage of 600 V.
The isolation voltage between pins and the heat‑sink plate is 1500 V.
The continuous collector current rating is 8 A per IGBT.
