This document describes the features and characteristics of the PS21961-4S Integrated Power Functions module. The module is a 600V/3A low-loss RC-IGBT inverter bridge with N-side three phase output DC-to-AC power conversion. It is of open emitter type and is suitable for AC100V~200V inverter drive for small power motor control.

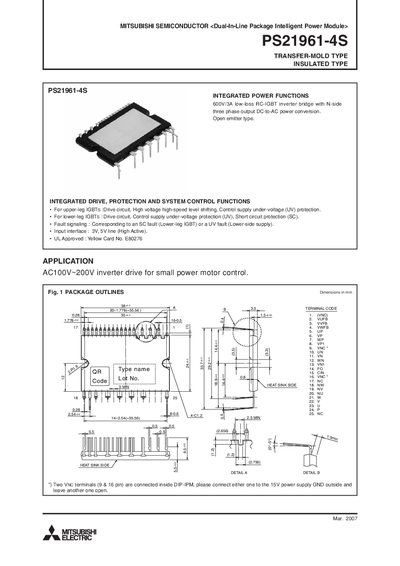

This manual describes the Mitsubishi PS21961-4S Dual‑In‑Line Package Intelligent Power Module. It includes maximum ratings, electrical and thermal characteristics, mechanical data, and recommended operating conditions for AC‑100V~200V inverter drives.
The document also contains internal circuit diagrams, timing charts for protection functions, wiring recommendations, and an example application circuit, helping designers integrate the module safely and efficiently.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Weight | 10 g |
| Thermal resistance (case‑to‑sink) | 0.3 °C/W |
