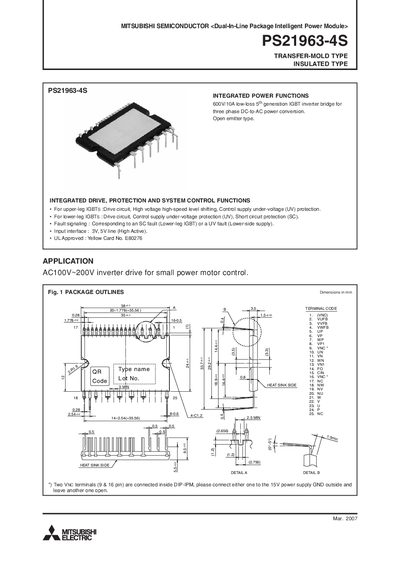

This datasheet mainly introduces the specifications of the power module PS21963-4S, including package type, pin definition, size, etc.
The PS21963-4S is a dual‑in‑line package intelligent power module that integrates drive, protection, and system‑control functions for three‑phase DC‑to‑AC conversion. It supports 600 V/10 A low‑loss IGBT operation with built‑in short‑circuit and under‑voltage protection.
This manual describes maximum ratings, electrical and thermal characteristics, mechanical mounting requirements, recommended operating conditions, timing charts for protective functions, wiring guidelines, and example application circuits. It also includes recommended MCU interface circuitry and detailed notes on component selection and layout.
| Collector‑emitter voltage (VCES) | 600 V |
|---|---|
| Continuous collector current (Ic) | 10 A |
| Weight | 10 g |
The module can continuously conduct 10 A per IGBT at 25 °C.
