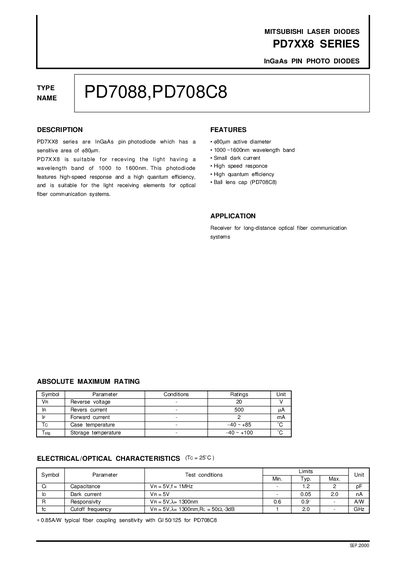

The PD7088, PD708C8 series are InGaAs photodiodes with a sensitive area of φ80µm. They are suitable for receiving light in the wavelength range of 1000 to 1600nm. The photodiodes feature high response speed and high quantum efficiency, and are suitable for optical fiber communication systems.
The PD7XX8 series are InGaAs PIN photodiodes designed for long‑distance optical fiber communication systems. They feature an 80 µm active diameter and operate across a 1000‑1600 nm wavelength band, offering high speed response and high quantum efficiency.
Key specifications include a maximum reverse voltage of 20 V, reverse current of 500 µA, forward current of 2 mA, case temperature range of –40 °C to +85 °C, and typical capacitance of 2 pF. Typical responsivity is 0.9 A/W at 1300 nm and cutoff frequency reaches up to 2 GHz.
| Active diameter | 80 µm |
|---|---|
| Wavelength band | 1000‑1600 nm |
| Maximum reverse voltage | 20 V |
| Maximum reverse current | 500 µA |
| Maximum forward current | 2 mA |
| Case temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +100 °C |
The PD7XX8 photodiodes have an active diameter of 80 µm.
They operate over a wavelength band of 1000 nm to 1600 nm.
The maximum reverse voltage rating is 20 V.
