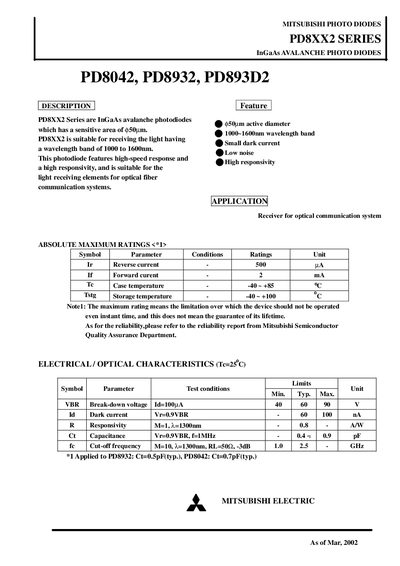

PD8XX2 Series are InGaAs avalanche photodiodes which has a sensitive area of φ50µm. PD8XX2 is suitable for receiving the light having a wavelength band of 1000 to 1600nm. This photodiode features high-speed response and a high responsivity, and is suitable for the light receiving elements for optical fiber communication systems.
The PD8XX2 series are InGaAs avalanche photodiodes with a 50 µm sensitive area, designed for optical fiber communication systems operating in the 1000‑1600 nm wavelength band. They offer low dark current, high responsivity, and fast response suitable for high‑speed receivers.
The datasheet lists absolute maximum ratings, electrical and optical characteristics, and safety guidelines. Key parameters include a breakdown voltage of 40‑90 V, dark current of 60‑100 nA, responsivity of 0.8 A/W at 1300 nm, and a cut‑off frequency up to 2.5 GHz. Handling precautions address the use of GaAs material and proper disposal as controlled industrial waste.
| Break‑down voltage (VBR) | 40‑90 V |
|---|---|
| Reverse current | 500 pA |
| Forward current | 2 mA |
| Dark current | 60‑100 nA |
| Responsivity (1300 nm) | 0.8 A/W |
| Capacitance (1 MHz) | 0.4‑0.9 pF |
| Case temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +100 °C |
| Sensitive area | 50 µm |
The PD8XX2 series operates over a wavelength band of 1000 nm to 1600 nm.
The absolute maximum reverse current is 500 pA.
They must be discarded as specially controlled industrial waste, separate from general waste.
Do not crush, grind, bake, or chemically treat the device; avoid direct contact when hot and keep away from flammable materials.
