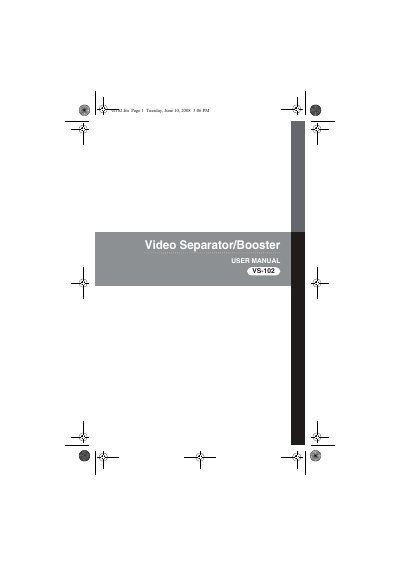

This document is the user manual for VS-102, which introduces the usage and precautions of the Video Separator/Booster. The equipment can prevent radio and TV interference and complies with FCC rules. The manual also mentions the package contents and possible problems.
The VS-102 Video Separator/Booster duplicates a single analog video source to two outputs and can extend transmission distance up to 210 ft (65 m). It supports VGA, SVGA and Multisync monitors and includes features such as automatic power‑saving mode and brightness control.
The manual provides package contents, safety warnings, installation steps, detailed specifications, and warranty information to help users set up and operate the device safely.
| Input Connection | High Density HD-15 Male |
|---|---|
| Output Connection | High Density HD-15 Female |
| Power Consumption | DC 9V, 210 mA (max.) |
| Cable Distance | 65 m (210 ft) max |
| Housing Material | Metal |
| Weight | 100 g |
| Dimensions (L×W×H) | 104 mm × 98 mm × 24 mm |
It can transmit video up to 65 meters (210 feet).
The device provides one video input and two video outputs.
