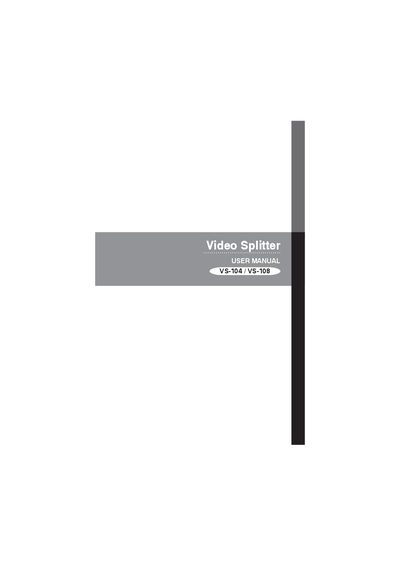

VS-104 / VS-108 User Manual Video Splitter FCC Information WARNING!!! This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.
The VS-104 / VS-108 Video Splitter duplicates a single VGA/SVGA/Multisync video source to four (VS‑104) or eight (VS‑108) outputs and can extend the signal up to 210 ft (65 m). It supports DDC, power‑saving mode, and can be daisy‑chained for larger installations.
Installation is straightforward: connect the PC video to the VIDEO IN port, attach monitors to the VIDEO OUT ports with HD‑15 cables, plug in the supplied power adapter, and power on the unit. Adjust the gain control switch for longer‑distance operation, and use the daisy‑chain method to link multiple splitters if needed.
| Video Inputs | 1 High Density HD-15 |
|---|---|
| Video Outputs (VS-104) | 4 High Density HD-15 |
| VGA Bandwidth (VS-104) | 250 MHz |
| Power Consumption (VS-104) | DC 9 V, 180 mA (max.) |
| Maximum Cable Distance | 65 m (210 ft) |
| Weight (VS-104) | 1.20 kg |
| Dimensions (L×W×H) | 22.40 × 15.20 × 5.20 cm |
The splitter can transmit video up to 65 m (210 ft) at maximum.
The VS‑104 provides four video outputs.
Yes, the units can be daisy‑chained by connecting a VIDEO OUT port to the VIDEO IN port of the next splitter.
Use the gain control switch on the bottom panel; slide it toward the front for high gain (longer distance).
