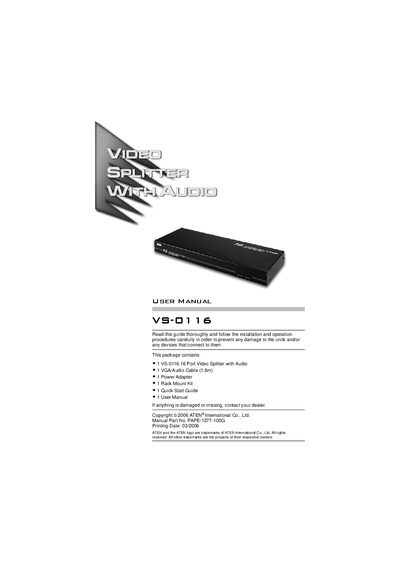

This document introduces the features and characteristics of the ATEN VS-0116 16 Port Video Splitter with Audio.
The VS-0116 is a 16‑port video splitter with audio that duplicates and enhances VGA video and stereo audio signals, supporting up to 250 MHz bandwidth and resolutions up to 1920×1440@60 Hz. It can cascade up to three levels, allowing thousands of monitors to be served over distances up to 65 m.
The manual covers hardware installation, single‑stage and cascaded setups, system requirements, front and rear panel descriptions, and detailed specifications such as power supply, temperature range, and connector types.
| Input Connectors | 1 × HDB‑15 (male) and 1 × 3.5 mm mini‑stereo jack (female) |
|---|---|
| Output Connectors | 16 × HDB‑15 (female) and 16 × 3.5 mm mini‑stereo jack (female) |
| Video Bandwidth | 250 MHz |
| Maximum Cable Distance | 65 m |
| Power Supply | DC 5.3 V, 2.4 A |
| Power Consumption | 3.3 W (maximum) |
| Operating Temperature | 0 °C ~ 50 °C |
| Weight | 2.8 kg |
The VS-0116 can connect up to 16 monitors.
Video signals can be transmitted up to 65 meters.
The splitter supports cascading up to three levels.
It requires a DC 5.3 V, 2.4 A power supply.
