The VS-201 Video Auto Switch can connect one video source to multiple display devices. The device uses a switch to select the output video source.
The VS-201 Video Auto Switch is an automatic video switch designed for analog monitors, supporting SVGA, VGA and multisync signals. It can boost video signals for long‑distance transmission up to 210 feet (65 m) and can be daisy‑chained with other VS‑ series switches.

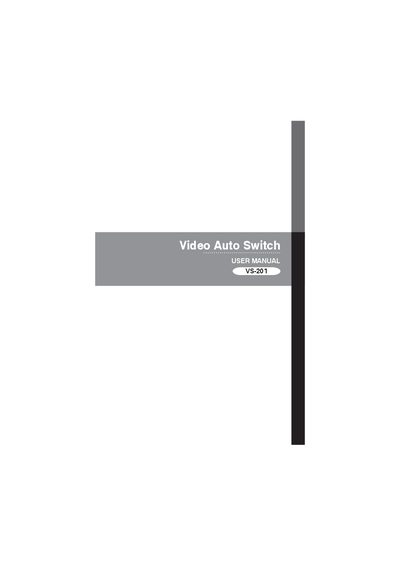

This manual covers package contents, installation steps, operation instructions, technical specifications, and warranty information. It also includes FCC compliance warnings and safety guidelines.
| Power Consumption | AC 9V, 100mA (max.) |
|---|---|
| Cable length (output) | 65M (210 ft.) (max.) |
| Signal Type | VGA, SVGA, Multisync |
| Video Input Connectors | 2 x HDB-15 Male |
| Video Output Connectors | 1 x HDB-15 Female |
| VGA Resolution / Vertical Frequency | 1920 x 1440 @80 Hz |
| Operating Temperature | 5 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non‑condensing |
| Housing Material | Metal |
| Weight | 0.165 kg |
| Dimensions (L x W x H) | 10.4 x 9.8 x 2.4 cm |
The VS-201 can extend video signals up to 210 feet (65 m).
It uses a 9 V DC power adapter drawing up to 100 mA.
Use the slide switch; when set to Local the unit prioritizes the local signal, and when set to Remote it prioritizes the remote signal.
