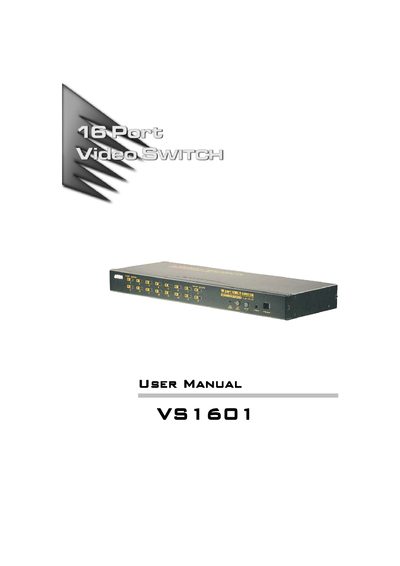

This document is the user manual of VS1601
This manual covers everything needed to install and operate the ATEN VS1601 video switch, including safety guidelines, rack‑mounting procedures, and detailed hardware setup. It also lists the package contents and provides troubleshooting tips.
The appendix supplies full technical specifications such as connector types, power requirements, video resolution, and environmental limits, helping users verify compatibility and optimal performance.
| Video Input Connectors | 16 x HDB-15 Male (Blue) |
|---|---|
| Audio Input Connectors | 16 x Mini Stereo Jack Female (Green) |
| Maximum Video Resolution | 1920 x 1440 @ 60 Hz |
| Weight | 2.60 kg |
| Dimensions (L × W × H) | 43.30 × 16.00 × 4.40 mm |
The VS1601 provides 16 video input ports using HDB‑15 male connectors.
It supports up to 1920 × 1440 pixels at 60 Hz.
The unit runs on an AC 9 V power supply drawing 2.5 W.
The IR remote works up to about 10 meters with a clear line‑of‑sight.
