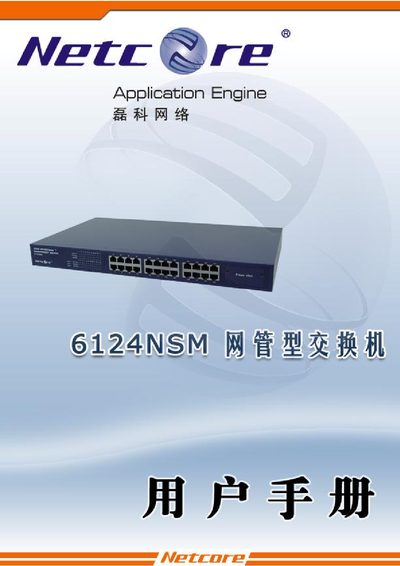

Netcore 6124NSM User Manual is the user manual of Netcore 6124NSM switch product, which introduces the function characteristics, installation method, connection method, configuration method and common problem handling methods of the switch in detail.
This manual covers the Netcore 6124NSM management switch, including its application engine, VLAN configuration, QoS settings, SNMP support, and console access. It also describes hardware features such as LED indicators, power requirements, and port speed capabilities.
Detailed sections explain how to use the web interface, Telnet/SSH command line, and various protocols like Spanning Tree, IGMP Snooping, and link‑error detection, helping administrators deploy and maintain the switch in a network environment.
| Port speed | 10/100 Mbps |
|---|---|
| Auto‑MDIX | Supported |
| VLAN standard | 802.1q |
| SNMP versions | v1/v2 |
| Console interface | RS‑232 |
| Input voltage | 240 VAC 50/60 Hz |
Use Telnet or SSH to connect to the console interface of the switch.
The switch supports 802.1q VLAN tagging as well as port‑based VLANs.
Each port operates at 10/100 Mbps.
Yes, SNMP version 1 and version 2 are supported.
