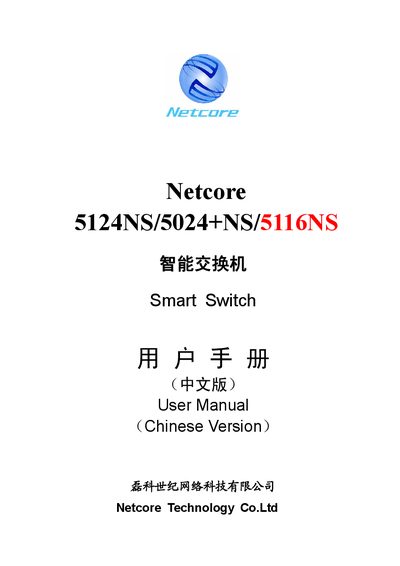

This document is the user manual of Netcore 5124NS/5024+NS/5116NS intelligent switch, which introduces the features and characteristics of the product, hardware description, installation, configuration and other information.
The Netcore 5124NS/5024NS/5116NS Smart Switch is an Ethernet switch offering 10/100Mbps copper ports and optional 100Mbps fiber SFP interfaces, with LED status indicators, VLAN and QoS features, and auto‑MDI/MDIX support.
This user manual covers hardware overview, installation steps, wiring diagrams, port configuration, VLAN and QoS setup, LED indicator meanings, and troubleshooting procedures such as LED issues and performance problems. This manual is written in Chinese.
| Number of 10/100Mbps ports (5124NS) | 24 |
|---|---|
| Number of 10/100Mbps ports (5024NS) | 24 |
| Number of 10/100Mbps ports (5116NS) | 16 |
| Supported Ethernet speeds | 10/100Mbps (auto‑negotiated), 100Mbps SFP fiber |
| IEEE 802.3x flow control | Full‑duplex |
| Back Pressure flow control | Half‑duplex |
| Dimensions (W × D × H) | 440 mm × 200 mm × 44 mm |
| Operating temperature | -0 °C to 50 °C |
| Operating humidity | 10 % to 90 % RH |
| Power input | 220 V AC, 50 Hz |
| Weight | 2.8 kg |
Check that the switch is connected to a proper power source and that the power cable is securely attached; replace the power source or cable if necessary.
Verify that the Ethernet cable is correctly connected and that the connected device complies with IEEE 802.3 standards and is within the allowed cable length.
It complies with IEEE 802.3 10Base‑T, 100Base‑TX, and 100Base‑FX standards for copper and fiber connections.
