The 3824DNS is a 24-port desktop switch that provides 24 10/100Mbps adaptive ports and supports full duplex, half duplex flow control.

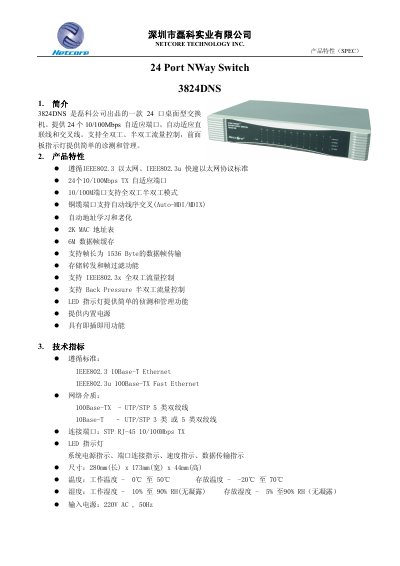

The Netcore 3824DNS switch is a 24‑port desktop‑type Ethernet device offering 10/100 Mbps adaptive ports with auto‑MDI/MDIX and full/half‑duplex flow control. It includes LED indicators for power, link, speed and data transmission, and features plug‑and‑play operation with an internal power supply.
Technical specifications include compliance with IEEE 802.3 and IEEE 802.3u standards, a 2 K MAC address table, 6 M data‑frame buffer, support for 1536‑byte frames, and storage‑forward and frame‑filtering functions. The unit operates from 220 V AC, measures 280 × 173 × 44 mm, and works within 0 °C to 50 °C and 10 %‑90 % RH. This manual is written in Chinese.
| Number of ports | 24 10/100Mbps adaptive ports |
|---|---|
| MAC address table size | 2K entries |
| Data frame buffer | 6 M |
| Maximum frame length | 1536 bytes |
| Auto‑MDI/MDIX | Supported |
| Input power | 220 V AC, 50 Hz |
| Dimensions (L×W×H) | 280 mm × 173 mm × 44 mm |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10 % to 90 % RH |
It provides 24 10/100 Mbps adaptive ports.
Yes, it supports automatic MDI/MDIX crossover.
The switch can handle frames up to 1536 bytes long.
