NETCORE 10/100Mbps Fast Ethernet Switch is a 5/8/16/24 port 10/100Mbps switch, which complies with IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards, IEEE802.3ab Gigabit Ethernet standard, and has automatic MDI/MDI-X line sequence crossover, automatic address learning and aging, store and forward and frame filtering functions, broadcast storm suppression, CRC checking to reduce error frames, support for data frame transmission of 1522 bytes, LED indicators provide simple detection and management functions, and have plug and play function.

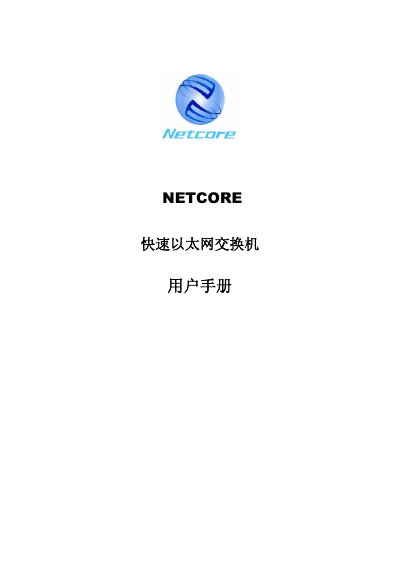

This manual covers the NETCORE Ethernet Switch series, available in 5, 8, 16, and 24‑port configurations. It describes the product’s compliance with IEEE802.3, IEEE802.3u, and (for gigabit models) IEEE802.3ab standards, and details the LED indicators, port functions, and environmental specifications.
Installation steps, safety precautions, and a troubleshooting section are included to help users set up the switch, verify connections, and resolve common issues such as power‑LED failure or performance degradation. This manual is written in Chinese.
| Number of ports | 5/8/16/24 10/100Mbps TX adaptive ports |
|---|---|
| Supported standards | IEEE802.3, IEEE802.3u, IEEE802.3ab (gigabit models) |
| Operating temperature | 0 °C to 50 °C |
| Input voltage | 180‑240 V AC, 50‑60 Hz |
| LED indicators | Power, link/act, speed indicators |
Check that the power cable is properly connected and try a different power outlet.
Cable length should not exceed 100 meters.
Use Category 5 unshielded twisted‑pair (UTP) or higher.
Reposition antennas, keep the switch away from computers, and plug power cords into separate outlets.
