This is the specification sheet for ValueRAM's 256M x 64-bit (2GB) DDR3-1333MHz CL9 SDRAM (Synchronous DRAM) memory module, based on sixteen 128M x 8-bit DDR3-1333MHz FBGA components. The SPD is programmed to JEDEC standard latency 1333MHz timing of 9-9-9 at 1.5V. This 204-pin SODIMM uses gold contact fingers and requires +1.5V. The electrical and mechanical specifications are as follows:

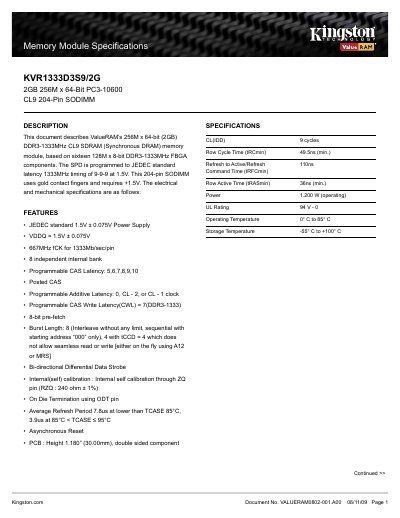

This datasheet describes Kingston's ValueRAM KVR1333D3S9/2G 2 GB DDR3-1333MHz CL9 SODIMM module. It details electrical and mechanical characteristics, including JEDEC‑standard 1.5 V power, 667 MHz fCK, and programmable latency settings.
The document also lists physical dimensions, operating temperature range, and power consumption, providing the necessary data for system designers and integrators.
| Capacity | 2 GB (256M × 64‑bit) |
|---|---|
| Data Rate | 1333 MT/s (667 MHz fCK) |
| Voltage | 1.5 V ± 0.075 V |
| CAS Latency (CL) | Programmable 5‑10 (default 9) |
| Power Consumption (operating) | 1.200 W |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 1.180 in (30.00 mm) |
It requires a JEDEC‑standard 1.5 V ± 0.075 V power supply.
The CAS latency is programmable from 5 to 10, with a default of 9.
The module operates from 0 °C up to 85 °C.
The module height is 1.180 inches (30.00 mm).
