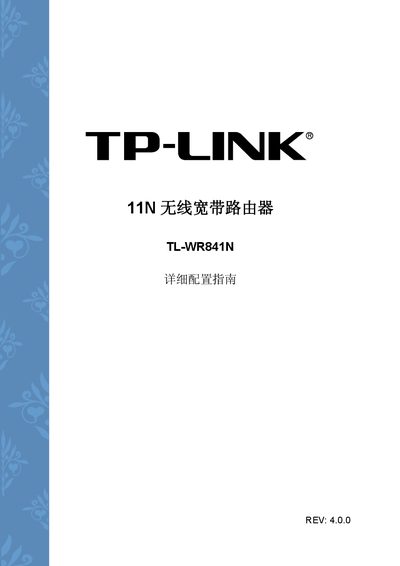

This document is a detailed configuration guide for the 11N Wireless Broadband Router TL-WR841N. The document describes the features and characteristics of the product.
This guide provides a complete overview of the TL‑WR841N wireless broadband router, covering its hardware layout, front and rear panel indicators, and environmental requirements. It also includes a quick‑install section that walks you through connecting the LAN/WAN ports and setting up basic network parameters.
Further chapters detail configuration options such as QSS security, DHCP server, port forwarding, parental controls, bandwidth management, and system tools for firmware upgrades, backup, and factory reset. Appendices contain FAQs, browser settings, MAC address lookup, and a full specification table. This manual is written in Chinese.
| LAN ports | 4 x 10/100Mbps Auto MDI/MDIX |
|---|---|
| WAN port | 1 x 10/100Mbps Auto MDI/MDIX |
| Frequency range | 2.4–2.4835 GHz |
| Maximum 802.11n data rate | up to 300 Mbps |
| Antenna | 2 dipole omnidirectional antennas |
| Transmit power | 20 dBm (max) |
| Operating temperature | 0 °C to 40 °C |
| Dimensions (L×W×H) | 192 mm × 129 mm × 32 mm |
If the computer’s wireless card supports WPS, the QSS security setting lets you quickly and securely connect to the router’s wireless network.
The MAC address is shown on the router’s status page in the format XX‑XX‑XX‑XX‑XX‑XX, where each X is a hexadecimal digit.
