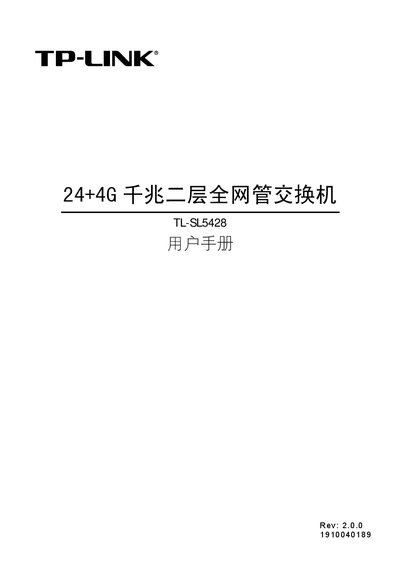

This document is the user manual for the 24+4G Gigabit Layer 2 Fully Managed Switch TL-SL5428, released by TP-Link Technologies Co., Ltd. It describes the features and characteristics of the product.
This manual covers the initial installation, web‑based management interface, and basic operation of the TL‑SL5428 24‑port Gigabit Ethernet switch. It includes safety notices, hardware layout, and step‑by‑step procedures for configuring ports, VLANs, QoS, and security features.
Advanced topics such as SNMP monitoring, cluster management, and system maintenance are also described, along with detailed parameter tables for hardware specifications and supported standards. This manual is written in Chinese.
| Supported Ethernet Standards | 10BASE‑T, 100BASE‑TX, 1000BASE‑T |
|---|---|
| Backplane Bandwidth | 12.8 Gbps |
| Power Input | 100‑240 V AC, 50/60 Hz |
| Operating Temperature | 0 °C to 40 °C |
Open a web browser and navigate to the switch’s IP address; the manual’s Section 3.1 describes the Web interface login procedure.
Use the 802.1Q VLAN configuration menu in the web interface; see Chapter 6.1 for detailed steps.
Enable SNMP in the System Management section and configure community strings as described in Chapter 12.1.
Yes, the manual includes a Cluster Management chapter (Chapter 13) that explains how to set up and operate multiple switches as a cluster.
