TL-PA501 Powerline Adapter supports plug and play, just with power outlet, you can expand your network with two adapters. The adapter can transmit data in powerline network with a distance of 300m, providing a simple and convenient networking solution.

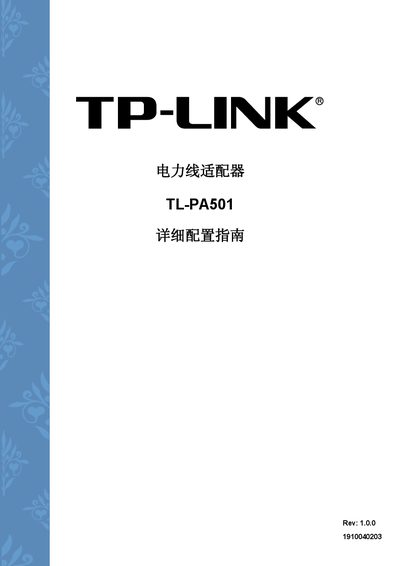

This reference manual introduces the TL‑PA501 powerline adapter, describing its compliance with HomePlug AV, IEEE 802.3 and IEEE 802.3u standards, its 500 Mbps data rate, 300 m transmission distance and 128‑bit AES encryption for secure networking over existing electrical wiring.
The guide covers hardware interfaces, typical usage scenarios, step‑by‑step installation, indicator LED functions, and a full specification table, helping users set up and maintain the device in home or office environments. This manual is written in Chinese.
| Standards | HomePlug AV, IEEE 802.3, IEEE 802.3u |
|---|---|
| Operating System Compatibility | Windows XP/Vista/7 |
| Maximum Data Rate | 500 Mbps |
| Transmission Distance | 300 m (same power line) |
| Data Security | 128‑bit AES Encryption |
| Ports | 1 RJ45 10/100/1000 Mbps |
| Dimensions | 105 mm × 58 mm × 40 mm (L × W × H) |
| Operating Temperature | 0 °C – 42 °C |
| Storage Temperature | -40 °C – 70 °C |
| Operating Humidity | 10 % – 90 % RH |
| Storage Humidity | 5 % – 90 % RH |
