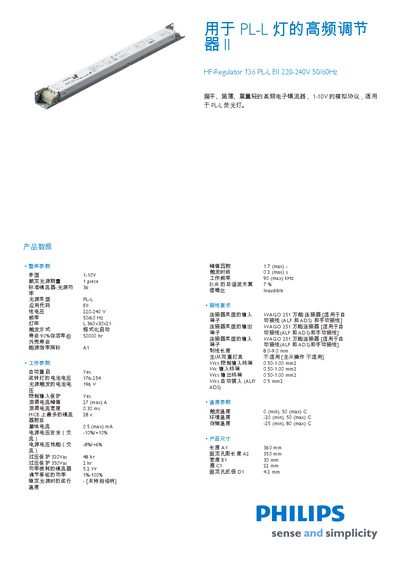

HF-Regulator 136 PL-L EII 220-240V 50/60Hz is a flat, ultra-thin, lightweight high-frequency electronic ballast with an analog protocol of 1-10V for PL-L fluorescent lamps.
This document presents the product data for the Philips HF‑R136 PL‑L high‑frequency regulator, a lightweight, ultra‑thin electronic ballast designed for PL‑L fluorescent lamps. It lists the regulator’s electrical parameters, protection features, and recommended wiring connections.
Key technical specifications such as input voltage, frequency, lamp current limits, dimensions, weight, and environmental ratings are included, along with certification references (EN, IEC, ISO) and connector details for both automatic (ALF/ADS) and manual wiring. This manual is written in Chinese.
| Input Voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Maximum Lamp Current | 27 A (max) |
| Surge Current Peak | 0.5 mA (max) |
| Lifetime (lamp) | 50 000 h |
| Operating Temperature Range | -20 °C to 50 °C |
| Storage Temperature Range | -25 °C to 80 °C |
| Weight | 0.260 kg |
| Connector Type | WAGO 251 universal connector |
The regulator operates on an input voltage of 220‑240 V.
It can support up to 27 A maximum lamp current.
