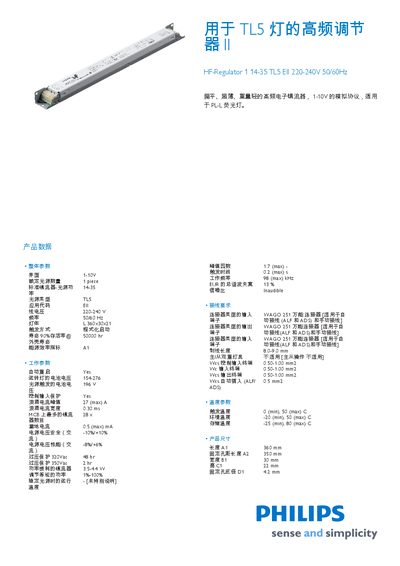

HF-Regulator 1 14-35 TL5 EII 220-240V 50/60Hz is a flat, ultra-thin, lightweight high-frequency electronic ballast for PL-L fluorescent lamps, with an analog protocol of 1-10V.
This document provides the technical data for the Philips HF‑R114‑35TL5 high‑frequency regulator used with TL5 fluorescent lamps. It lists overall parameters, operating settings, wiring requirements, temperature limits, dimensions and certification compliance.
The manual includes detailed product specifications such as line voltage, frequency, surge protection, maximum ballast count, physical dimensions, weight, and environmental standards, as well as relevant safety and electromagnetic compatibility certifications. This manual is written in Chinese.
| Rated line voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Maximum surge current | 0.5 mA (max) |
| Maximum number of ballasts | 27 A (max) |
| Weight | 0.255 kg |
| Operating lifetime | 50 000 h |
| Operating temperature range | -20 °C to 50 °C |
| EMC certifications | EN 55015, EN 55022 |
The regulator is rated for 220‑240 V line voltage.
It operates at 50/60 Hz.
It complies with EN 55015, EN 55022, IEC 61347‑2‑3 and IEC 60929 standards.
