The BSN 400 L304 I is a copper/iron construction impregnated (HID standard) inductive ballast suitable for use with HID light sources, in conjunction with an external trigger.

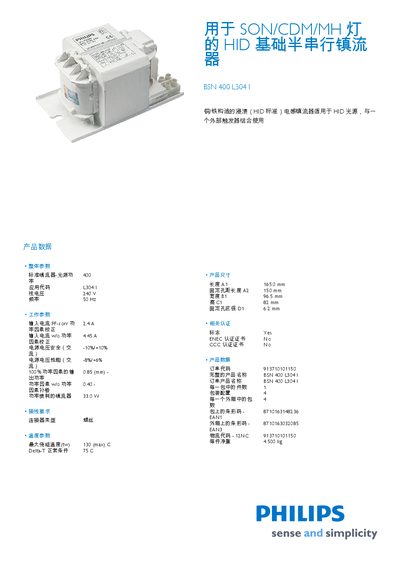

This manual details the technical specifications, installation parameters, and safety guidelines for the Philips BSN 400 L304 HID lamp. It includes overall parameters, operating parameters, connection requirements, temperature limits, and product data.
Key sections cover dimensions, weight, power consumption, power factor, packaging configuration, and regulatory information, helping installers and users ensure correct setup and compliance. This manual is written in Chinese.
| Power Factor (minimum) | 0.85 |
|---|---|
| Maximum Operating Temperature | 130 °C |
| Length | 165.0 mm |
| Weight | 4.500 kg |
The lamp operates at 240 V and 50 Hz.
The lamp measures 165.0 mm × 150 mm × 96.5 mm × 82 mm × 6.2 mm.
The maximum operating temperature is 130 °C.
