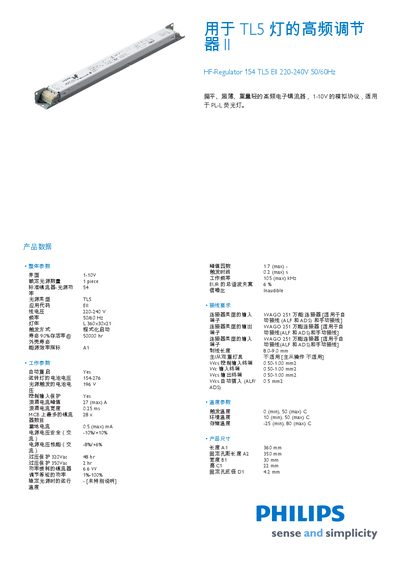

HF-Regulator 154 TL5 EII 220-240V 50/60Hz is a flat, ultra-thin, lightweight high-frequency electronic ballast with an analog protocol of 1-10V, suitable for PL-L fluorescent lamps.
This manual describes the Philips HF‑R154 TL5 high‑frequency regulator, a flat, ultra‑thin electronic ballast designed for TL5 fluorescent lamps. It outlines the regulator’s key features, such as automatic restart, programmable start, and compatibility with 220‑240 V AC power at 50/60 Hz.
The document lists detailed technical data, including input voltage, lamp count, dimensions, weight, temperature limits, surge protection values, and certification references (EN, IEC, ISO). Wiring diagrams and connector specifications (WAGO 251 universal connectors) are also provided. This manual is written in Chinese.
| Input voltage | 220‑240 V |
|---|---|
| Frequency | 50/60 Hz |
| Maximum lamp count | 1 piece |
| Lamp type | TL5 |
| Surge current peak (max) | 0.5 mA |
| Over‑voltage protection | 320 Yac / 350 Yac |
| Weight | 0.270 kg |
| Lifetime (operating hours) | 50 000 h |
| Operating temperature range | -25 °C to 80 °C |
The regulator operates on an input voltage of 220‑240 V AC.
It supports a maximum of one TL5 lamp.
The device can operate from –25 °C up to 80 °C.
