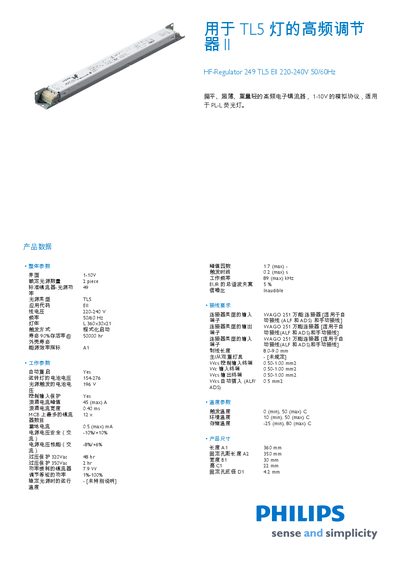

HF-Regulator 249 TL5 EII 220-240V 50/60Hz is a high frequency regulator for TL5 lamps. It is a flat, ultra-thin, lightweight high frequency electronic ballast with an analog protocol of 1-10V, suitable for PL-L fluorescent lamps.
The HF‑Regulator 249 TL5 is a flat, ultra‑thin high‑frequency electronic ballast designed for PL‑L fluorescent lamps. It operates on a 220‑240 V AC supply at 50/60 Hz and supports a trigger voltage range of 1‑10 V.
The manual lists key parameters such as a 50000 hr lamp life, over‑voltage protection (320Yac, 350Yac), surge current limit of 0.5 mA, and an operating temperature range of 0 °C to 50 °C. Physical dimensions are 360 mm × 30 mm × 22 mm and the unit weighs 0.310 kg. This manual is written in Chinese.
| Input Voltage | 220-240 V |
|---|---|
| Frequency | 50/60Hz |
| Compatible Lamp Type | PL-L fluorescent lamp |
| Lamp Life (90% survival) | 50000 hr |
| Weight | 0.310 kg |
| Surge Current (max) | 0.5 mA |
| Over‑voltage Protection | 320Yac, 350Yac |
| Operating Temperature Range | 0 °C to 50 °C |
The regulator operates on an input voltage of 220‑240 V.
It is compatible with PL‑L fluorescent lamps.
The device can operate from 0 °C to 50 °C.
