This document introduces the CP 12BP28 capacitor, designed for power factor correction in HID lamp circuits. The capacitor is designed to improve the power factor of discharge light sources such as fluorescent lamps, halogen and ceramic metal halide lamps, high-pressure mercury lamps, and sodium lamps. It has a line voltage of 250V, a frequency of 50/60Hz, a capacitance of 12μF, and the output terminal of the connector type can be a plug-in connector, insulated wire, or flat quick connector. The operating temperature range is -40 to 85 degrees Celsius. The product complies with the GB18489-2001 and GB/T18504-2001 standards and has obtained VDE certification.

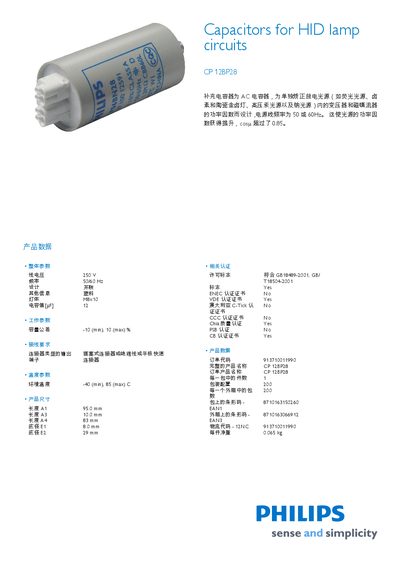

This Philips CP 12BP28 datasheet provides the key electrical and mechanical parameters for the capacitor used in HID lamp circuits. It lists the rated voltage, frequency, temperature limits, and dimensional data for the component.
The document also includes packaging details, bar‑code numbers, and compliance markings such as ENEC, VDE, and GB standards. It is intended for designers and technicians who need precise specifications for integration into lighting systems. This manual is written in Chinese.
| Rated Frequency | 50/60 Hz |
|---|---|
| Operating Temperature Range | -40 °C to 85 °C |
It can operate from –40 °C to 85 °C.
Key dimensions are 95.0 mm (A1), 10.0 mm (A3), 83 mm (A4), 8.0 mm (E1) and 29 mm (E2).
